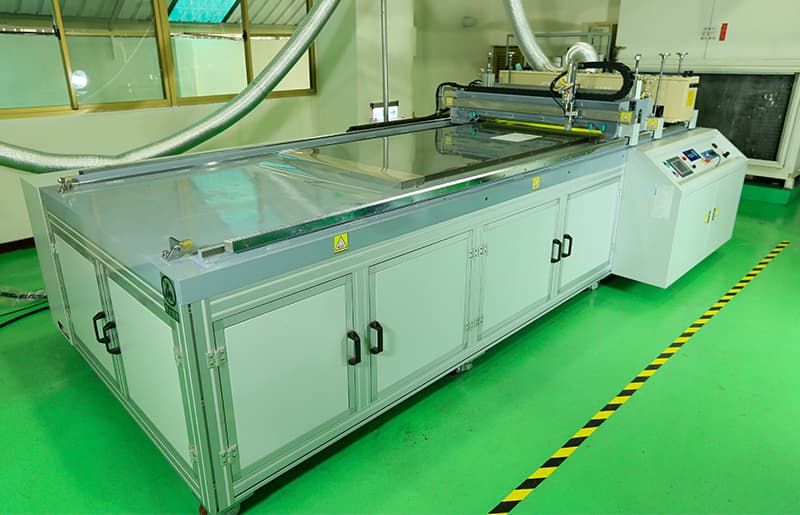

UV Plate Coating Machines
UV Plate Coating Machines
UV Plate Coating Machines
UV Plate Coating Machines
2-sided UV Plate Coating Machines
UV Plate Coating Machines
UV Plate Coating Machines
UV Plate Coating Machines
UV Plate Coating Machines
2-sided UV Plate Coating Machines
Features
  • UV adhesives are precisely coated on the structure template, forming a structural optical pattern.
  • PC is used to count the stack system, laminating mechanism, and blanking mechanism.
  • The quick plate change design can save you a lot of time for small-scale production of samples or volume production.
Functions
They are used to produce light guide plates, microstructure forming, hardened protective coatings, and a variety of materials applicable to solar optical plates, such as PET, PC, PMMA, glasses, etc.
Equipments
UV plate coating machines, Solvent type plate coating machines.
Download
INQUIRY BACK
  • Specification
  • Mechanism
  • Product Applications
Voltage 3φ; 380V/ 220V; 50Hz/ 60Hz
Air Pressure 6-8kg/CM²
Machine Speed 70sec/cycle (Adjustable based on light intensity and coating thickness)
Applicable Substrate PVC
Substrate Thickness ~5mm
Roller Width <65'' (1000 x 1500mm)
Coating Width 900mm
Coating Thickness 0-50μm. Tolerance: ±1 μm
(Thickness and tolerance vary depending on adhesive CPS and substrate characteristics.
Coating Method Dot Dispensing
UV Light Microwave UV Lamp/ Electrode UV Lamp/ UV LED Lamp
  • Servo drive + PLC programming control
  • HMI control system:
    • The full-color touch monitor is used to display and record the operation status.
    • Set several process parameters based on the production conditions.
    • An abnormal alarm is issued automatically once any abnormal machine operations occur or any abnormal component is detected.
    • Display abnormal status, and record abnormal causes as well as how to solve them
  • Laminating mechanism:
    1-side and 2-side lamination
  • UV lamps:
    Microwave lamps, electrode lamps, and LED lamps.
  • Oven:
    Types / Vertical type, clamshell type, and open side type
    Drive / air floating, roller drive
Optical film type
Light guide plates, microstructure forming, and light-condensing structure forming.
Smart plate type
Various protective coatings and functional material coatings.
Applicable substrates
Acrylic sheets, PC plates, glasses, aluminum foil plates/soft film transfer.
